Numerical control working centre with 3 or 4 axis to grind and polish shaped glasses.
Thanks to the linear and circular interpolation X, Y and Z axis, the machine can process any kind of shape and profile; it is also possible to make holes, internal and external millings and routings.

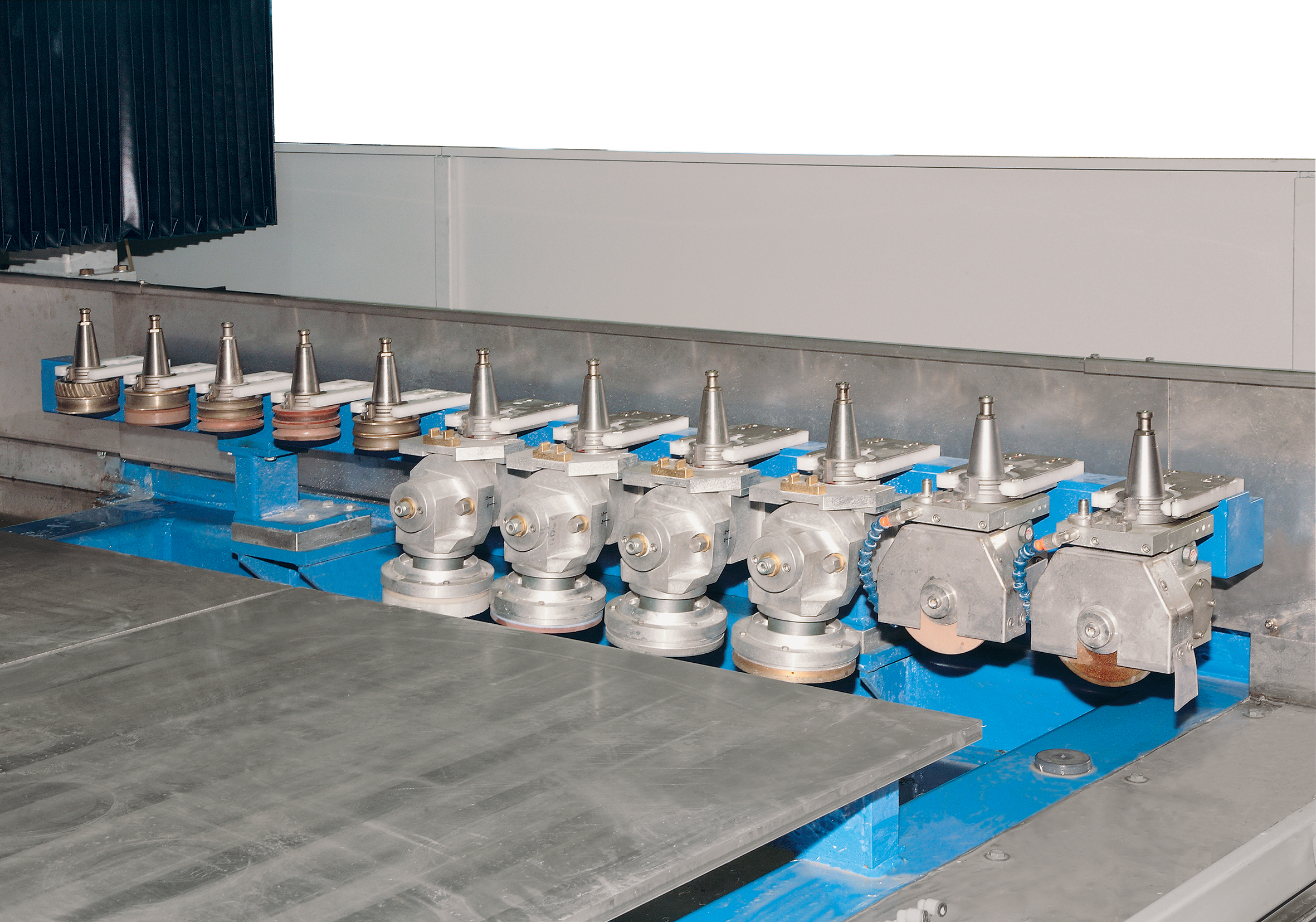

The machine is equipped with high precision electro spindle, automatic tool store and aluminum working table, on which several glass sheets can be positioned. IZAR is available in different versions, basing on maximum glass size.
IZAR has a dedicated CAD-CAM, touch screen numerical control, teleassistance, program transmission via USB/Ethernet card
CUSTOMIZATION: - Custom made machine - C axis and aggregate groups for grooving, sawing and beveling (internal and external) and cerium oxide spray unit for bevel polishing - Automatic wheel dresser - Machine status light column.
IZAR25-N | IZAR25 | IZAR32 | IZAR42 | |
Glass size | 2700x1300 mm | 2500x1300 mm | 3250x1700 mm | 4200x2300 mm |
Glass thickness | 2-12 mm | 2-80 mm | 2-80 mm | 2-80 mm |
Max wheel's diameter | 150 mm | 150 mm | 150 mm | 150 mm |
Spindle power | 4.8 kW | 15 kW | 15 kW | 15 kW |
Tool store | - | 9 positions | 20 positions | 24 positions |
Programmable spindle rounds | 12 000 rpm | 12 000 rpm | 12 000 rpm | 12 000 rpm |
Other sizes upon request.
