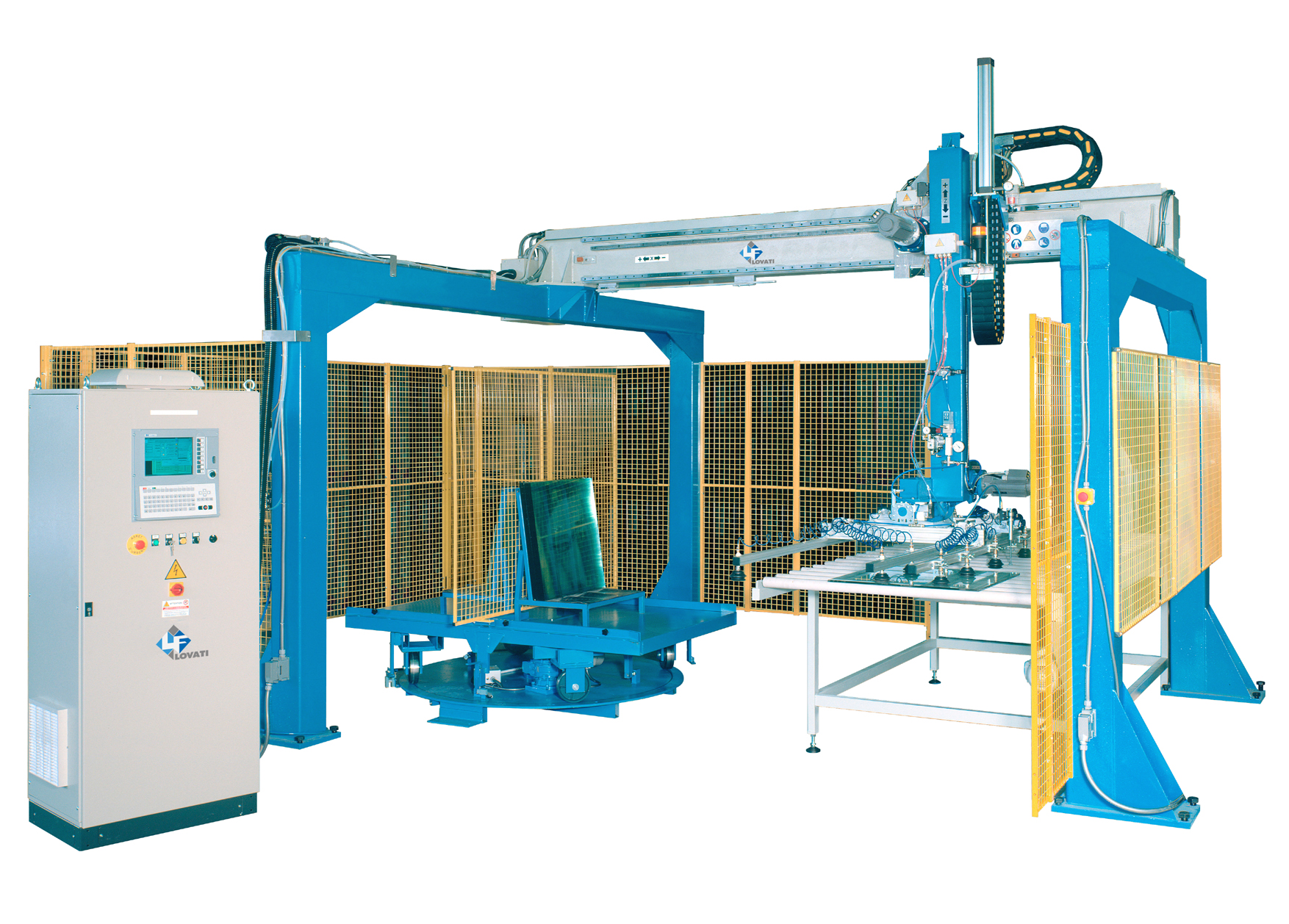

Numerical control loading unit to transfer glass sheet from vertical plane to horizontal plane.
Available as unloading unit, too.
All mouvements are done by numerical control.
X, Z and W axes are moved by means of Brushless motors and teir positioning is controlled by individual rotary encoder.
Single large glass sheet or several small sheets can be loaded during each cycle.

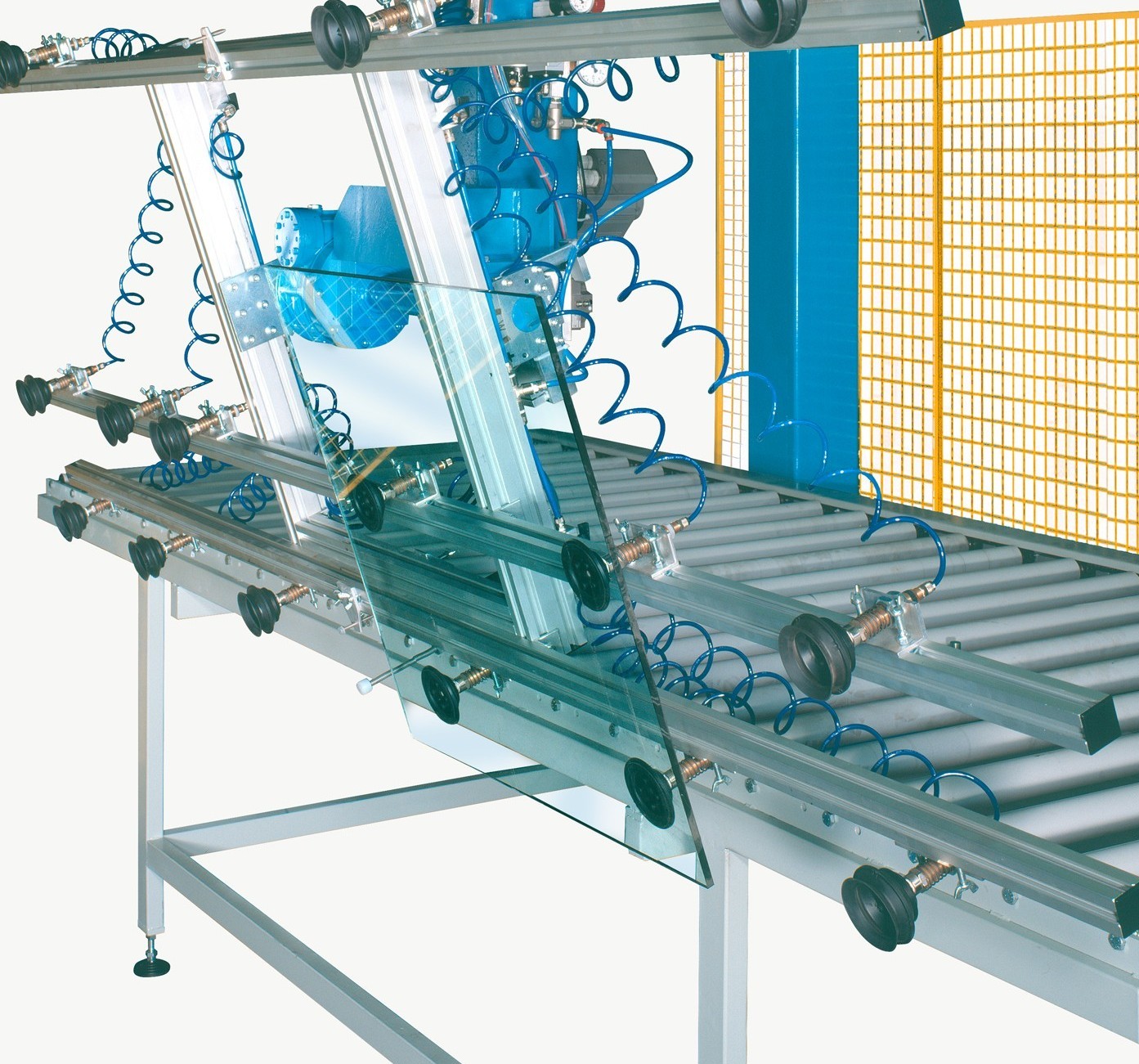

The loading unit is complete with a motorized roller conveyor.
Glass centering/positioning is accomplished by electrical sensors and pneumatic cylinder.

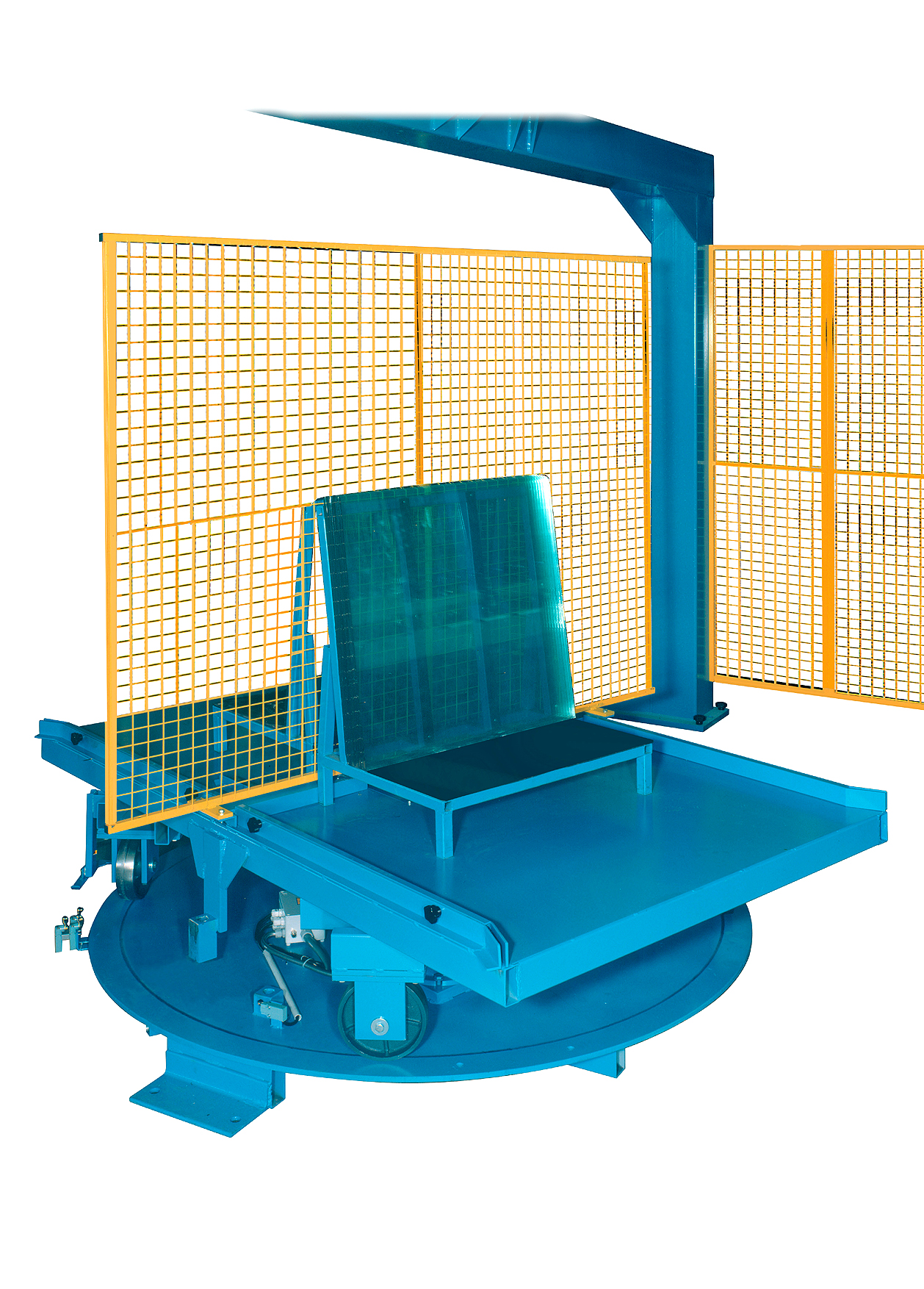

CARGO can be equipped with a special system to rotate the glass through an angle of 90° and can be complete with two pallets carousel.
The loading units CARGO are available in different versions, basing on glass size; all can be produced as unloading units (CARGO U series).
minimum glass size | maximum glass size | |
CARGO 2010-S | 180x150 mm | 2000x1000 mm |
CA2RGO 212 | 220x220 mm | 2200x1200 mm |
CARGO 2214 | 220x220 mm | 2200x1400 mm |
CARGO 2516 | 220x220 mm | 2500x1600 mm |
CARGO 3015 | 220x220 mm | 3000x1500 mm |
CARGO 4025 | 400x500 mm | 4000x2500 mm |
Other versions upon request.
